Copper round tubes 6 x 1 mm
Product information

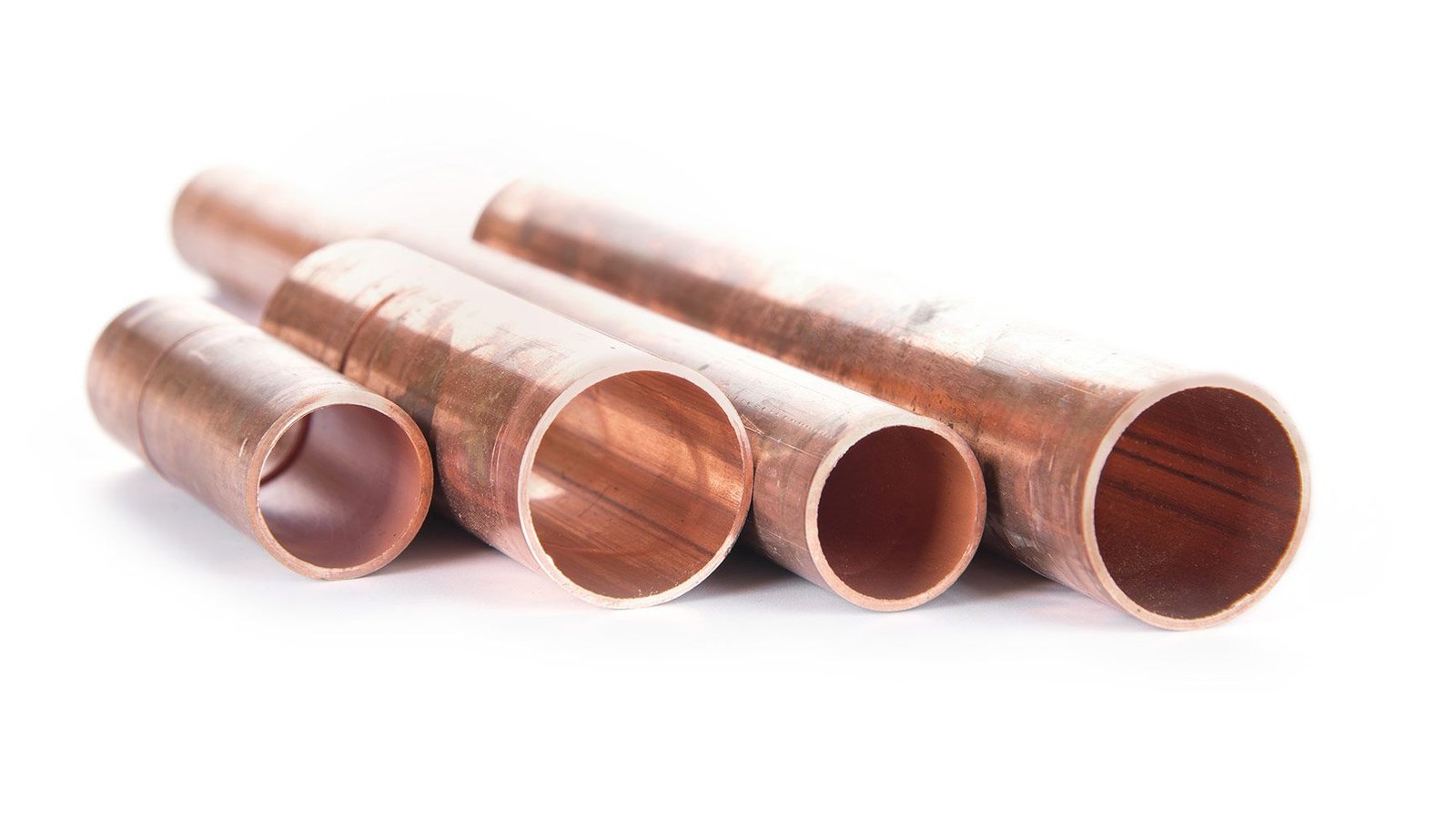

Copper round tubes – SF-Cu / Cu-DHP (CW024A)
Copper round tubes made of SF-Cu (Cu-DHP, CW024A) are specifically designed for applications in plumbing, heating and air conditioning systems. Due to their very good corrosion resistance, excellent processing properties and hydrogen resistance, they are ideal for piping systems and technical applications in equipment construction.
Main features
- Material: SF-Cu / Cu-DHP (CW024A)
- Material number: WN 2.0090
- Standard: DIN EN 12449
- Condition: R250 (half-hard, cold-worked)
- Surface: raw / bright
- Profile shape: round tube

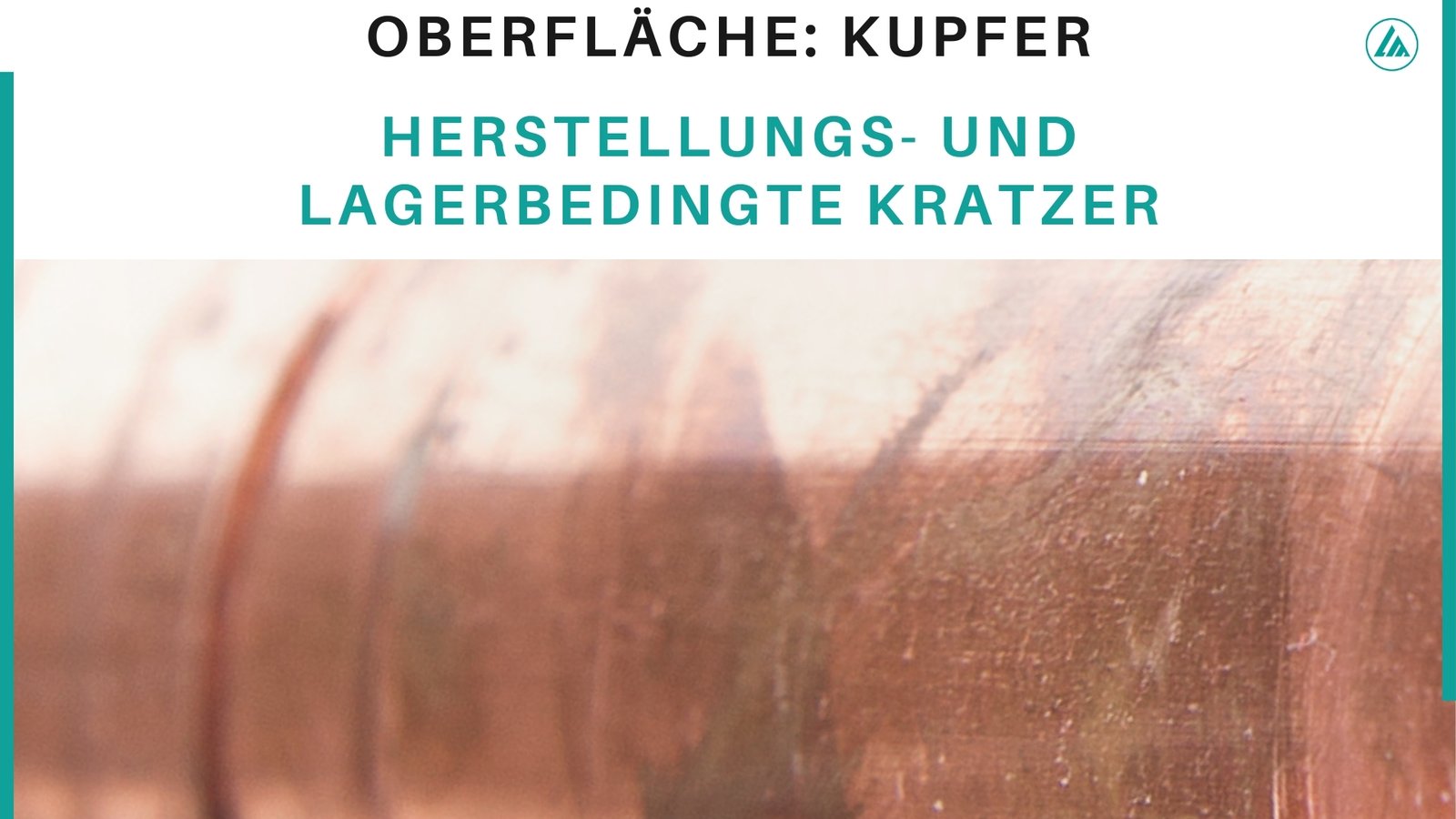

Note: Saw-cut edges are unfinished and not deburred. The surface is raw/bright, which may result in typical production-related scratches and storage marks. This is standard in the trade and does not constitute grounds for complaint.
Material properties
- deoxidized copper with residual phosphorus content (Cu-DHP)
- very good corrosion resistance
- very good weldability, brazing and machinability
- hydrogen resistant
- no requirement for electrical conductivity
Technical specifications
- Material: SF-Cu / Cu-DHP (CW024A)
- Material number: 2.0090
- Standard: EN 12449
- Condition: R250
- Delivery form: bar length
- Surface: raw / bright
Dimensional tolerances

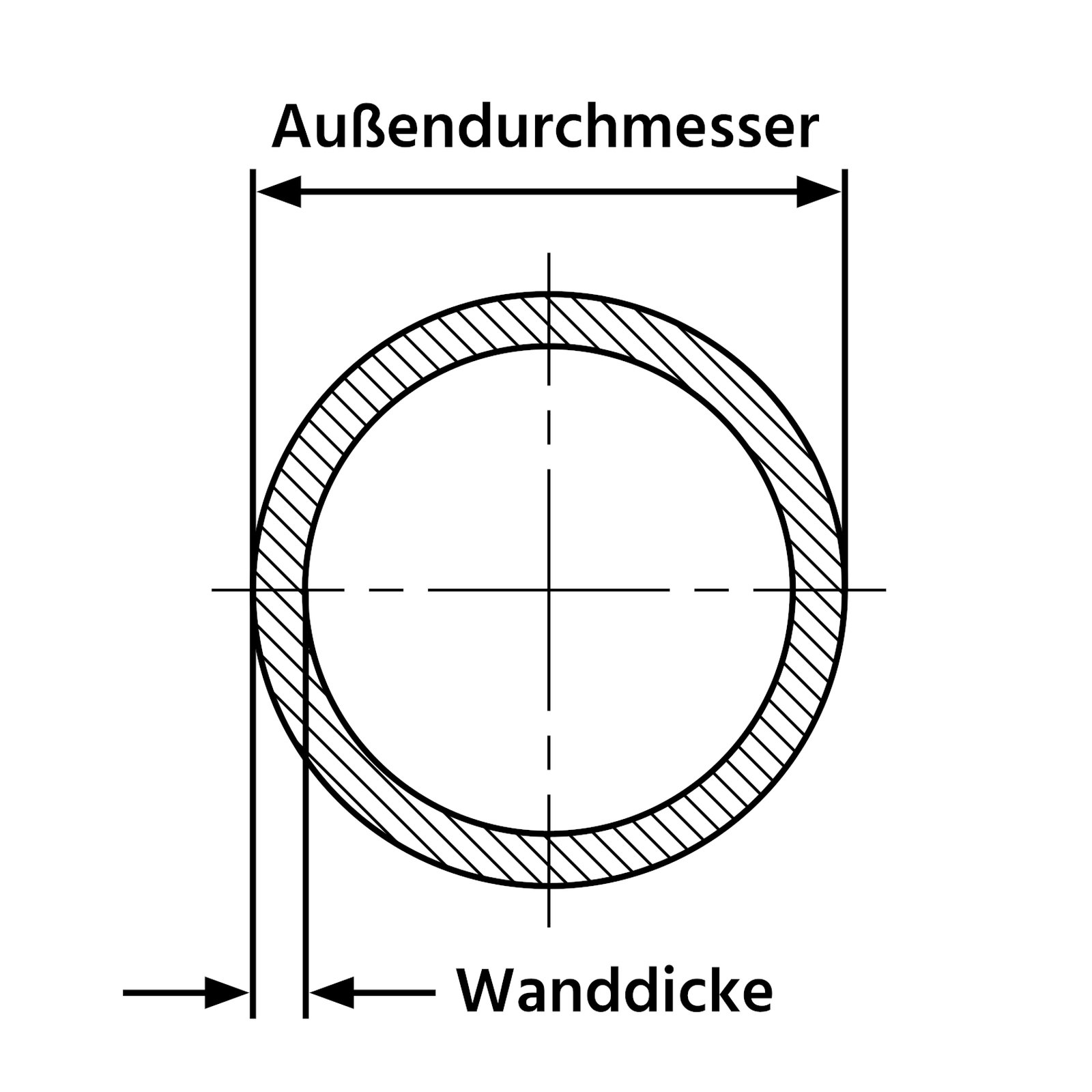

- Outer diameter: approx. ±0.15 mm (depending on batch)
Production-related deviations within the applicable standards are permitted.
Applications
- plumbing systems and piping
- heating and air conditioning systems
- equipment construction
- mechanical engineering and industry
- technical and decorative applications
Surface condition and appearance may vary depending on the batch. Deviations between the product presentation and the actual delivery are possible due to different production batches as well as display-related screen deviations and do not constitute grounds for complaint.
