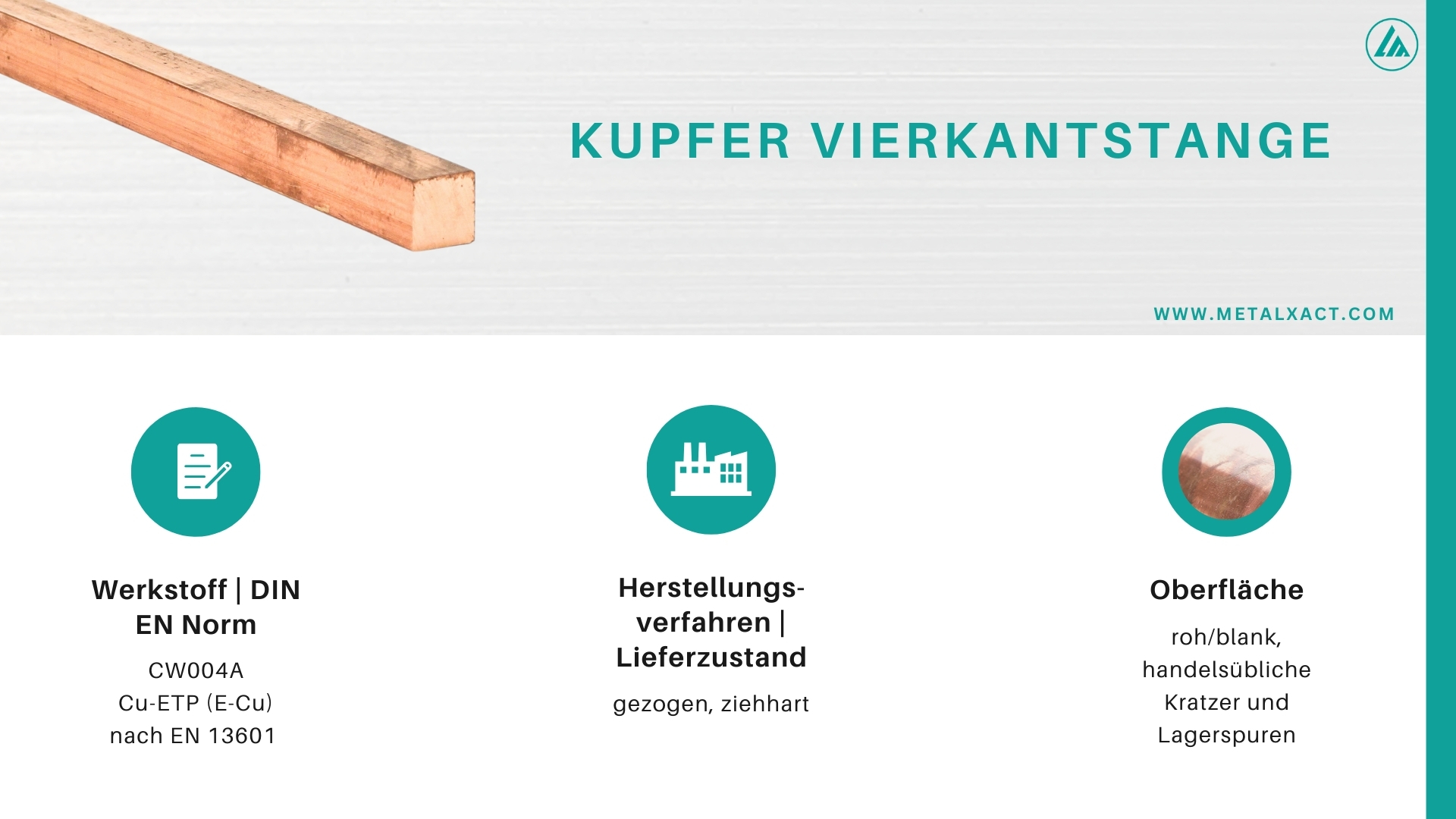

Copper square bar 4 x 4 mm
Product information
Copper square bars – E-Cu / Cu-ETP (CW004A)
Copper square bars made of E-Cu (Cu-ETP, CW004A) are characterized by very high electrical and thermal conductivity as well as versatile application possibilities. Thanks to their stable square shape, they are particularly suitable for structural applications, precision components as well as use in electrical and energy engineering.
Main features
- Material: E-Cu / Cu-ETP (CW004A)
- Material number: WN 2.0060
- Standard: EN 13601
- Surface: raw / bright
- Profile shape: square bar
Note: Saw-cut edges are unfinished and not deburred. The surface is raw/bright, which may result in typical production-related scratches and storage marks. This is standard in the trade and does not constitute grounds for complaint.
Material properties
- oxygen-containing copper (Cu-ETP)
- very high electrical conductivity
- very good thermal conductivity
- good hot and cold formability
- good corrosion resistance
- very good solderability (soft and hard soldering)
- suitable for all common welding processes
Technical specifications
- Material: E-Cu / Cu-ETP (CW004A)
- Material number: 2.0060
- Standard: EN 13601
- Surface: raw / bright
- Manufacturing process: drawn, hard-drawn
- Electrical conductivity: approx. 56–58 m/(Ω·mm²)
Dimensional tolerances
- Side dimension: -0 / +1 mm
Production-related deviations within the applicable standards are permitted.
Applications
- electrical engineering and energy distribution
- busbars and conductors
- mechanical engineering and construction
- jewelry and design applications
- technical and decorative components
- DIY and model making projects
Surface condition and appearance may vary depending on the batch. Deviations between the product presentation and the actual delivery are possible due to different production batches as well as display-related screen deviations and do not constitute grounds for complaint.
