Square Stainless Steel Glass Clamp WITHOUT Safety Plate V4A Stainless Steel
€6.71 *
Available, delivery time: 1-3 working days
Product information

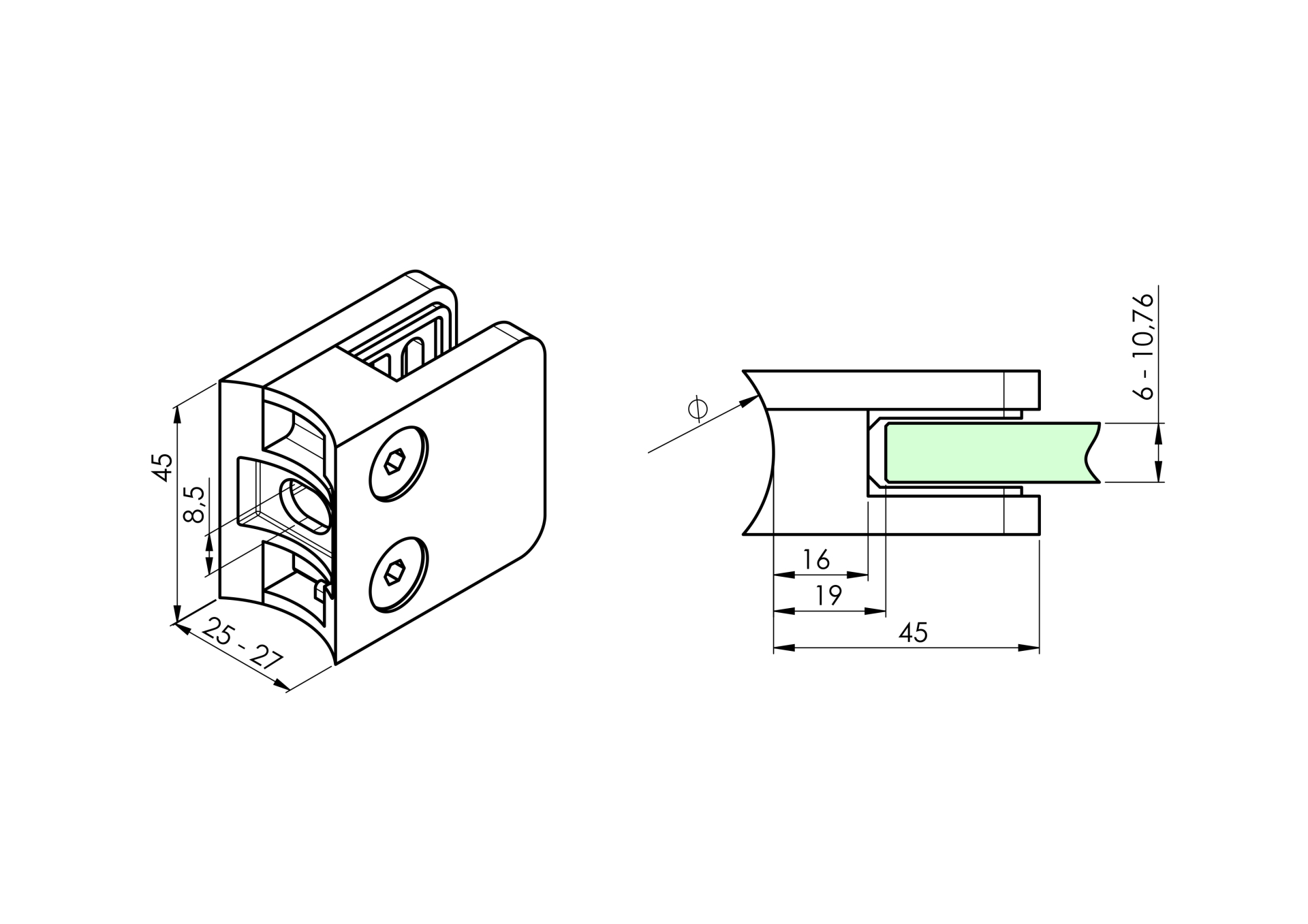

Square stainless steel glass clamp 45 × 45 mm
This high-quality square stainless steel glass clamp is designed for secure fixing of glass panels to railings with round tubes Ø 42.4 mm. The supplied rubber inserts are designed for 6 mm glass and protect the panel from direct contact with the metal. This version is supplied without a safety plate and without a safety pin. The result is a stable and visually appealing glass fixing.
The glass clamp is made of V4A stainless steel. Compared with V2A, V4A offers increased corrosion resistance and is particularly suitable for demanding outdoor, humid, coastal or saline environments.
Properties
- Dimensions: 45 × 45 mm
- Mounting: round tube Ø 42.4 mm
- Glass thickness: 6 mm
- Rubber inserts: included
- Safety plate: not included
- Safety pin: not included
- Material: V4A stainless steel
Applications
- Glass railings and balustrades
- Balcony and terrace railings
- Stair railings
- Glass privacy screens and partition elements
Scope of delivery
- 1 × stainless steel glass clamp
- matching rubber inserts for 6 mm glass
Material & benefits
Compared with V2A, V4A stainless steel offers increased corrosion resistance and is particularly suitable for demanding outdoor, humid, coastal or saline environments.
Installation notes
Preparation
We recommend the following tools and materials for installation:
- Allen key
- ISO 7380 M8 × 20 stainless steel button head screw (not included)
- METALXACT retaining compound or a suitable thread-locking adhesive
- rubber inserts matched to the glass thickness
- METALXACT stainless steel care spray

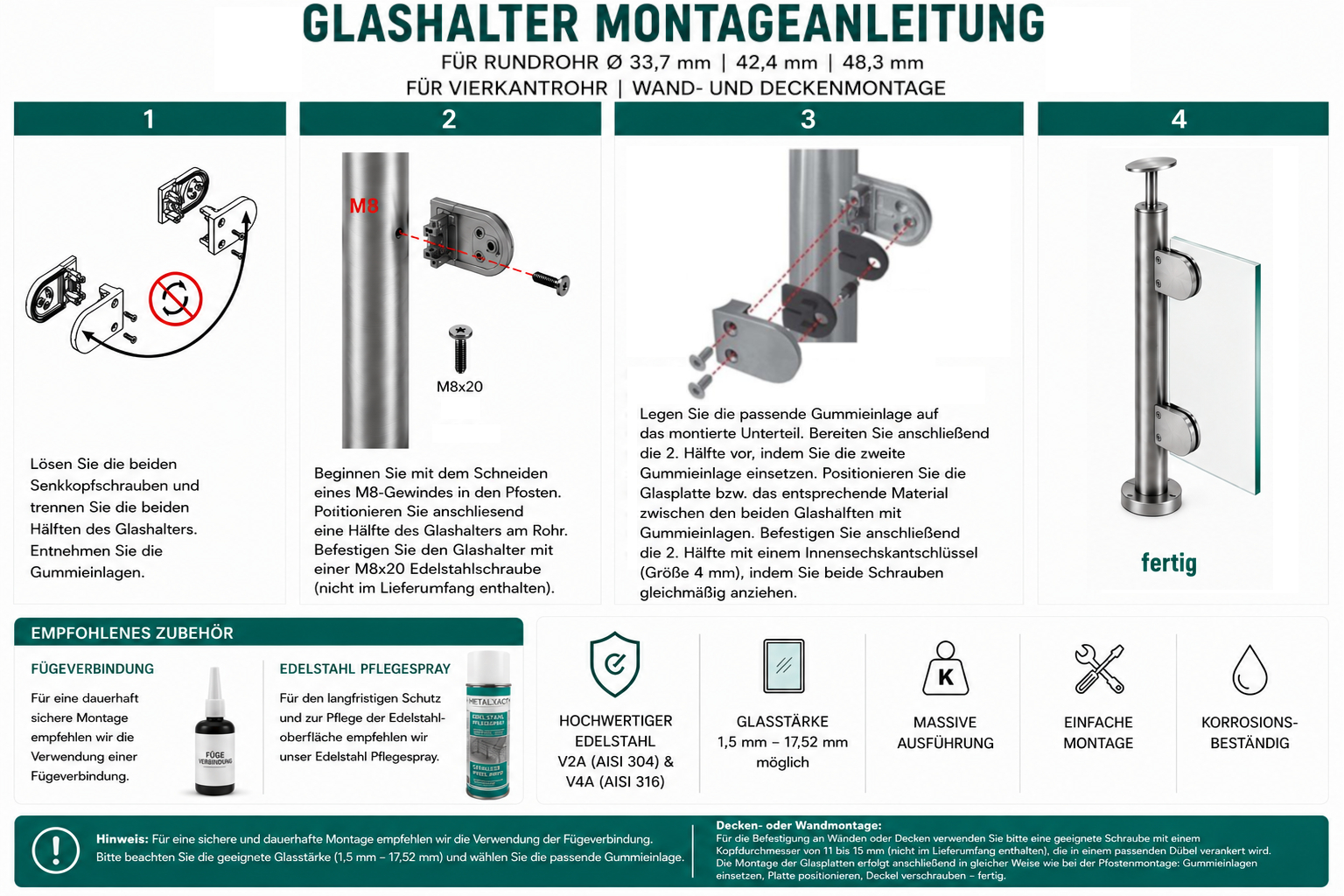

Installation
First loosen the two M6 × 16 countersunk screws connecting the two halves of the glass clamp using a suitable Allen or TX30 key. We recommend applying a small amount of thread-locking or retaining adhesive to the screw threads to achieve a permanently secure connection.
Then fasten one half of the glass clamp to the tube, post or intended mounting surface using a stainless steel button head screw; ISO 7380 M8 × 20 is recommended. Tighten the fixing screw evenly and securely with the appropriate tool.
Fit the rubber inserts suitable for the glass thickness to the inner faces of the clamp. If necessary, an Allen key may be used carefully as an installation aid. Position the glass panel and attach the second half of the clamp to the already fixed half using the two countersunk screws, tightening them evenly.
Recommendation for lasting strength and care
METALXACT retaining compound helps create a permanently secure screw connection. METALXACT stainless steel care spray is suitable for final cleaning and maintenance and gives the glass railing and stainless steel surfaces a clean, even shine.
Important safety information
The suitability of the glass clamp, fixing materials and glass panel must be professionally assessed for the respective construction. Installation must take account of the structural conditions and applicable requirements. Fixing screws, adhesive, care spray and additional installation materials are only included if expressly stated in the respective offer.
