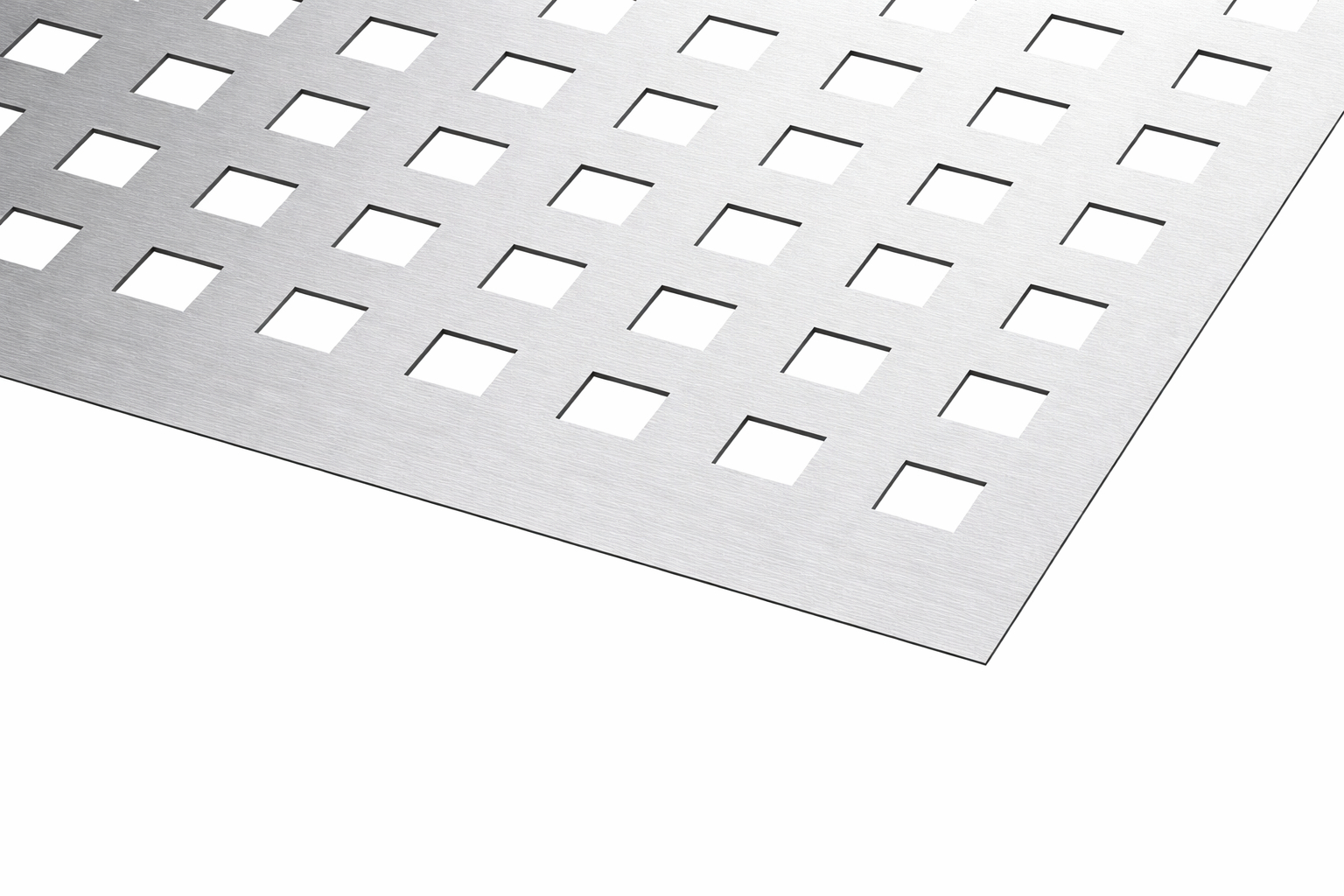

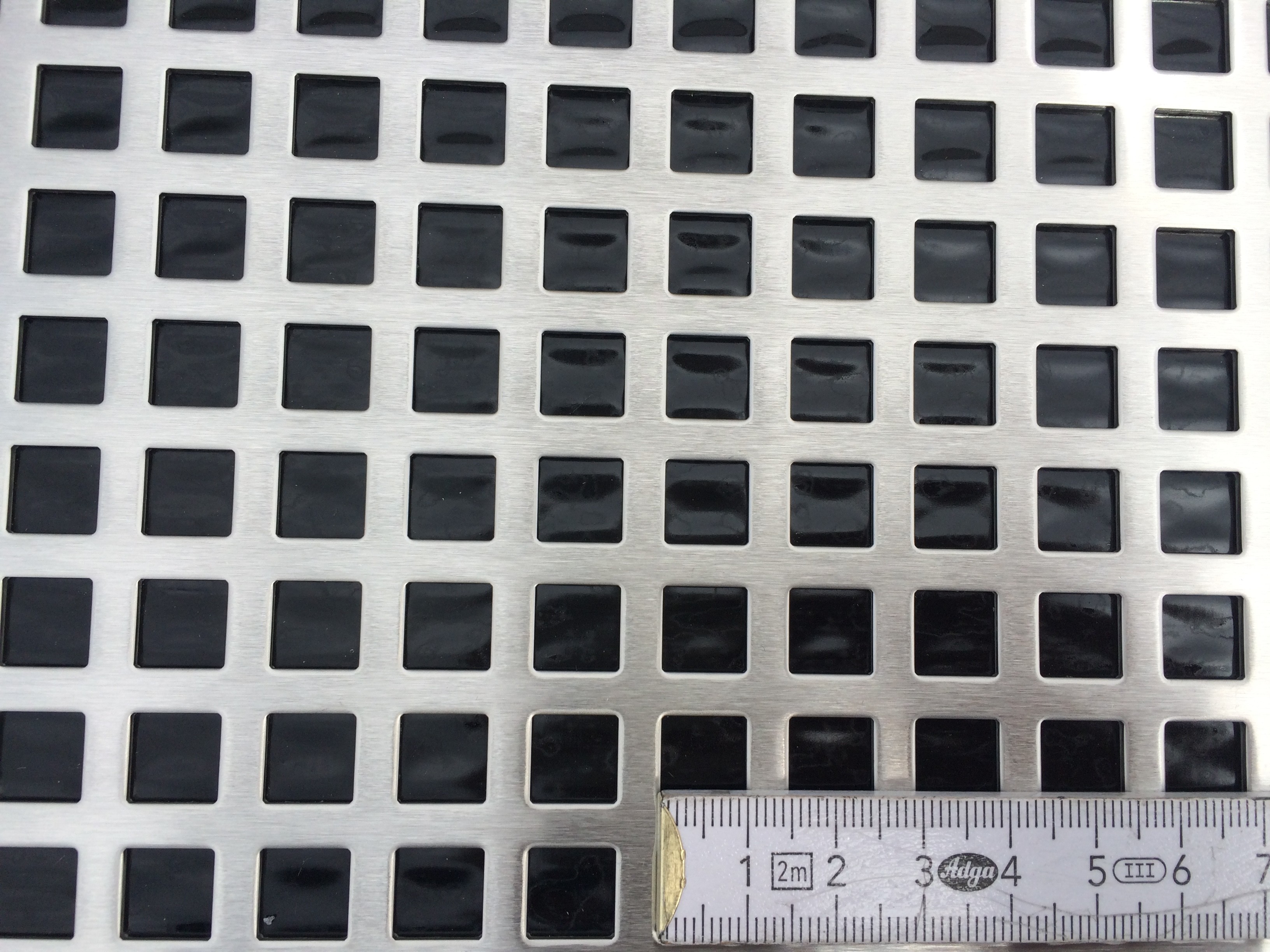

Perforated stainless steel sheet QG 10 - 15 mm | t=1,5 mm
Product information
Stainless steel perforated sheets ground K240 – X5CrNi18-10 (1.4301) according to EN 10088-2 / DIN 24041
These stainless steel perforated sheets in ground finish K240 are manufactured from stainless steel X5CrNi18-10 (1.4301), also known as V2A or AISI 304. The sheets are ground on both sides and additionally provided with a protective film. Thanks to the combination of a decorative surface and high corrosion resistance, these perforated sheets are suitable for both technical and architectural applications.
Main features
- Material: X5CrNi18-10 (1.4301) / AISI 304
- Standards: EN 10088-2, DIN 24041
- Manufacturing: cold-rolled and punched, mechanically levelled, chemically degreased
- Surface: ground K240 on both sides, film-coated
- Design: perforated sheet without surrounding border
Note: Cut edges are unfinished and not deburred due to production. The perforated sheet is supplied without surrounding border. The ground surface may show slight variations in grinding pattern or film application due to manufacturing. Deviations in the perforation pattern or in the edge areas are possible and do not constitute grounds for complaint, provided the requirements of the applicable standards are met.
Material properties
- very good corrosion resistance
- high-quality, decorative surface (ground K240)
- good formability
- very good weldability
- non-magnetizable in solution-annealed condition
- scale-free surface
- suitable for applications in the food sector
Technical specifications
- Material: X5CrNi18-10 (1.4301)
- Standard: EN 10088-2
- Surface: ground K240, film-coated on both sides
- Manufacturing process: cold-rolled, punched, mechanically levelled, chemically degreased

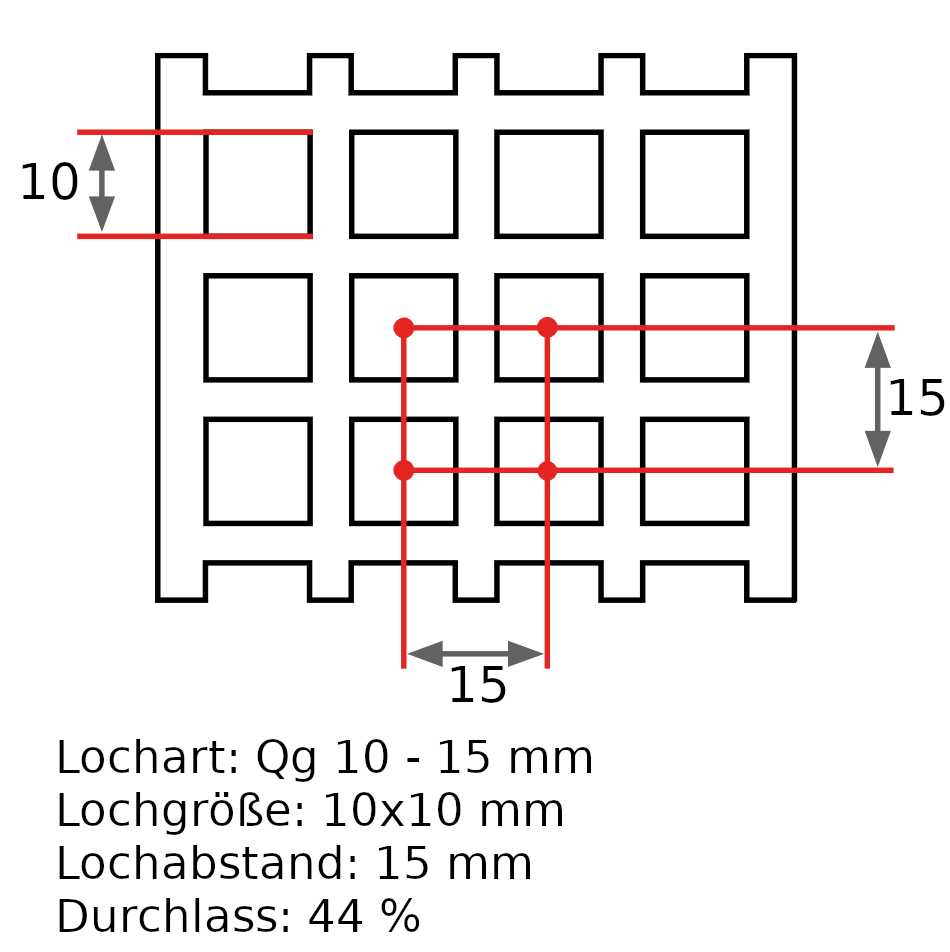

- Perforation pattern: according to selection (e.g. round hole, square hole)
- Tolerances: according to DIN 24041
Dimensional tolerances
The dimensional tolerances for stainless steel perforated sheets are based on DIN 24041 as well as the applicable standards for cold-rolled stainless steel sheets. Production-related deviations in the perforation pattern, web widths and edge areas are permissible.
Applications
- architecture and façade elements
- interior fitting and decorative applications
- food and hygiene sector
- mechanical and plant engineering
- furniture and design constructions
- public facilities (e.g. railway stations, airports)
- DIY and construction projects
Surface condition and appearance may vary depending on the batch. Deviations between the product presentation and the actual delivery are possible due to different production batches as well as display-related screen deviations and do not constitute grounds for complaint.
