Silver anodized aluminium round tubes 8 x 1 mm

Daily shipping
Secure shopping
Quality guarantee
Skip image gallery
Silver anodized aluminium round tubes
Silver anodized aluminium round tubes
Silver anodized aluminium round tubes
Silver anodized aluminium angle
Silver anodized aluminium round tubes
Silver anodized aluminium round tubes
Silver anodized aluminium round tubes
Silver anodized aluminium angle
Cutting & Machining
mm
Value must be between %calculations.min_laenge% and %product.customFields.handelsgroesse_laenge%
Please note that custom-made items are excluded from return. Further information can be found in our cancellation policy.

Standard sizes are generally cheaper than custom cuts.

Length selection:
DEAL
DEAL
DEAL
DEAL
DEAL
Trennlinie:
Deburring:
Cutting costs per piece:
Cutting costs are not charged for standard stock sizes.
Length tolerance:
For more precise dimensions please select “custom cut”.
Powder coating
You have the option of customising this item with a powder coating of your choice.
Detailed information can be found in our information sheet.
Information sheet on powder coating (PDF)
Would you like powder coating?:
Trennlinie:
Color:
A one-time surcharge applies for special colors and will be shown separately in the cart.
Trennlinie:
Special color:
Gloss level:
Primer:
A one-time surcharge applies for the primer and will be shown separately in the cart.
Summary
Menge:
Length:
Length:
Tolerance:
Theoretical weight (per piece):
Theoretical weight (total):
Deburring:
Deburring:
Powder coating:
Powder coating:
Theor. Gewicht (pro Stück):
base_price_discount_percent:
base_price_without_discount:
Order more - save more!

€1.84 *

on the base price
Base price: €1.84* / m

Available, delivery time: -

Product number: LMX-01ROEL-001

Product information

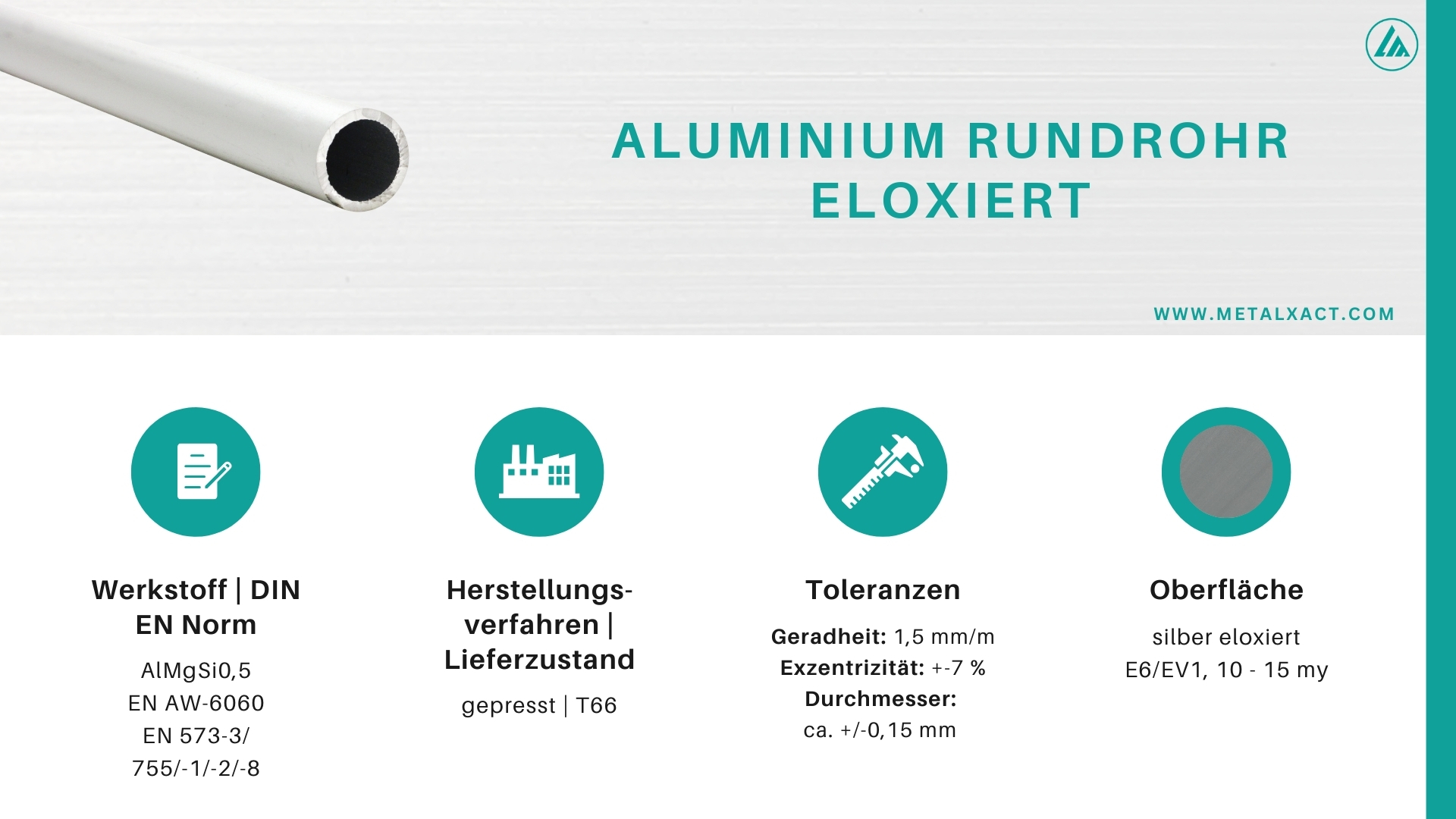

The aluminium round tube made of EN AW-6060 (AlMgSi0.5) is supplied with a silver anodised surface E6/EV1. The tube is extruded and delivered in temper T66.

Technical features:

  • Material: AlMgSi0.5
  • Alloy designation: EN AW-6060
  • Surface: silver anodised E6/EV1
  • Coating thickness: approx. 10–15 µm
  • Temper: T66
  • Manufacturing process: extruded
  • Standards: EN 573-3, EN 755-1 / -2 / -8

Surface description:

  • E6: chemically pre-treated, anodised and sealed, matte finish
  • EV1: natural tone anodising process producing a silver anodised layer

Tolerances according to EN 755-8 (guideline values):

  • Outside diameter tolerance: approx. ±0.40 mm
  • Inside diameter tolerance: approx. ±0.30 mm

The stated values apply to typical diameter ranges from approx. 10 mm to 300 mm. The tables of EN 755-8 are decisive.

Material properties:

  • low density
  • very good corrosion resistance
  • tight dimensional tolerances
  • good machinability
  • non-magnetic
  • very suitable for decorative anodising
  • weldable and solderable
  • suitable for food-contact applications according to EN 602

Notice: Suspension marks may occur due to the anodising process. These are technically required, do not affect functionality and do not constitute a defect.

The sawn edges are not anodised, untreated and not deburred.

Surface appearance and colour may vary depending on production batch and display settings.
