Aluminium chequer plate 1.5/2.0 mm Duett W2 (2 studs)
Product information
Aluminium checker plate Duett W2 – AlMg3 (EN AW-5754 H111/H114)
This aluminium checker plate in Duett design (2 bars) is made from the aluminium alloy AlMg3 (EN AW-5754) and supplied in temper H111/H114. The sheets are manufactured using the embossed rolling process and feature a structured surface on one side, which is particularly suitable for slip-resistant applications. Thanks to the combination of low weight, high corrosion resistance and good workability, the material is highly versatile.
Main features
- Material: AlMg3 (EN AW-5754 H111/H114)
- Standards: EN 573-1/-3/-4, EN 485-2, EN 515, EN 1396
- Manufacturing: embossed rolled

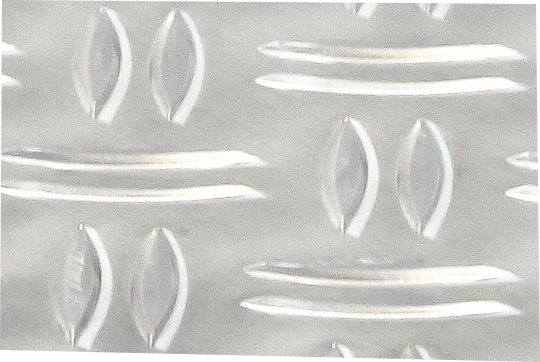

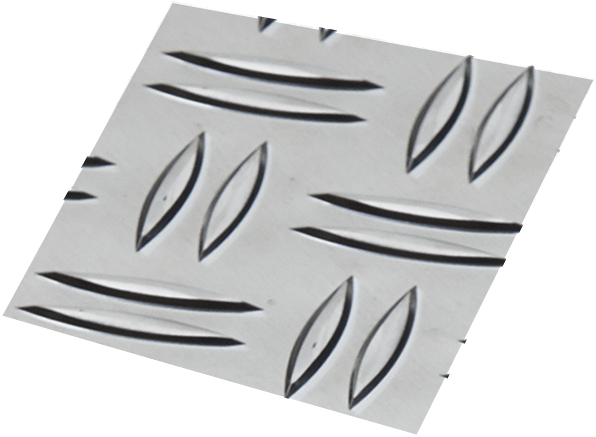

- Surface: Duett W2 (2 bars), one-sided patterned
- Design: checker plate / tread plate
Note: Cut edges are unfinished and not deburred due to production. Production- and rolling-related surface characteristics such as rolling marks, slight scratches or differences in the tread pattern may occur and do not constitute grounds for complaint, provided the requirements of the applicable standards are met.
Material properties
- good corrosion resistance, including for outdoor use
- slip-resistant surface due to tread pattern
- low weight combined with good strength
- very suitable for anodizing and powder coating
- good weldability and brazeability
- non-magnetizable
- limited machinability
- seawater resistant
Technical specifications
- Material: EN AW-5754 (AlMg3)
- Temper: H111 / H114
- Standards: EN 573, EN 485-2, EN 515, EN 1396
- Surface: Duett W2, embossed on one side
- Manufacturing process: embossed rolled
- Lengths: standard lengths or custom cut

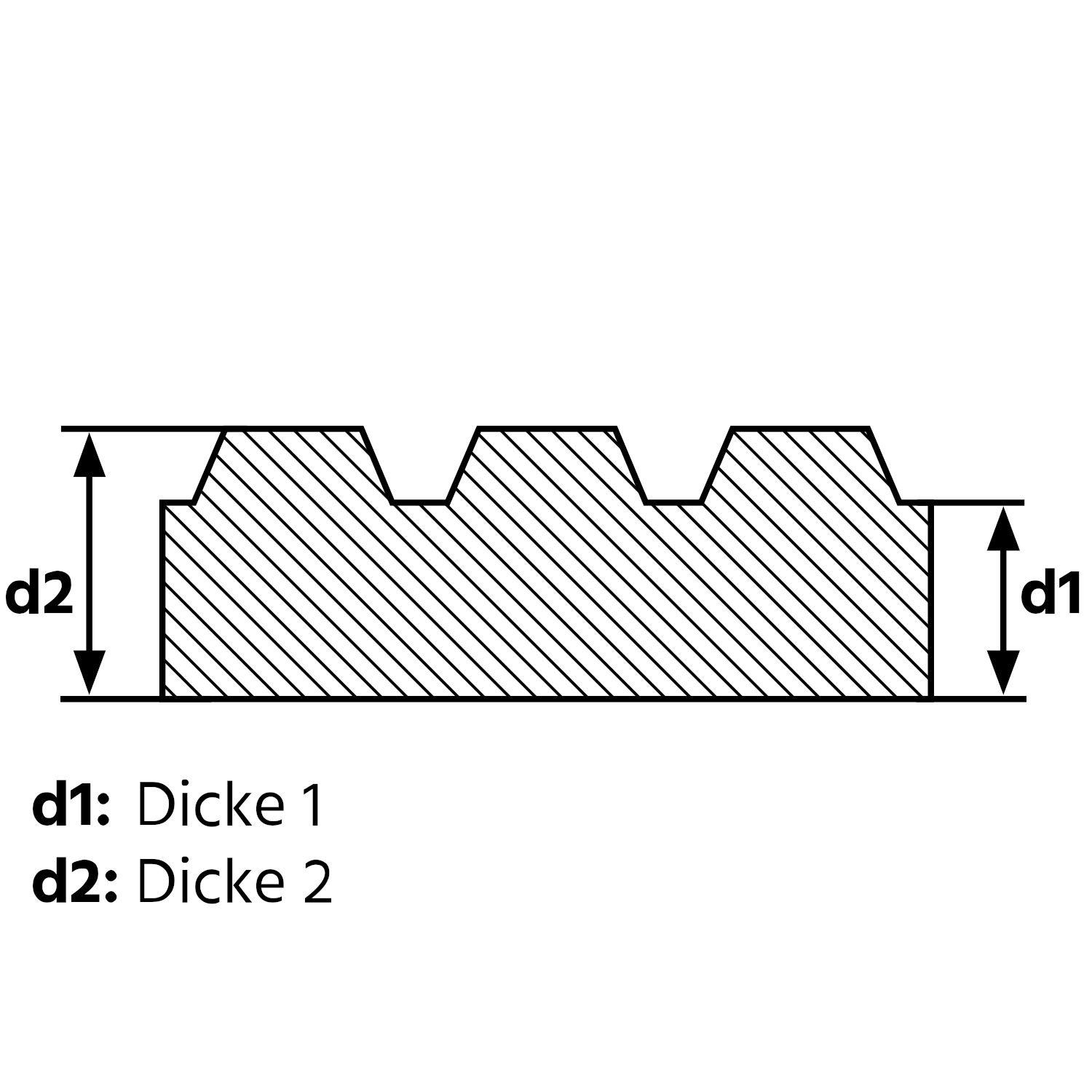

- Dimensions: according to selected thickness and width
Dimensional tolerances
The dimensional tolerances for aluminium checker plates are based on the applicable standards of the EN 485 series. Production-related deviations in the area of the tread pattern as well as the material thickness are permissible and do not affect functionality.
Applications
- slip-resistant floors, walkways and platforms
- stairs, ramps and barrier-free access
- vehicle construction, trailers and loading areas
- machine cladding and protective sheets
- interior and exterior cladding
- workshop and industrial areas
- DIY and construction projects
Surface condition and appearance may vary depending on the batch. Deviations between the product presentation and the actual delivery are possible due to different production batches as well as display-related screen deviations and do not constitute grounds for complaint.
