Silver anodized aluminium rectangular tubes 20 x 10 x 2 mm

Daily shipping
Secure shopping
Quality guarantee
Skip image gallery

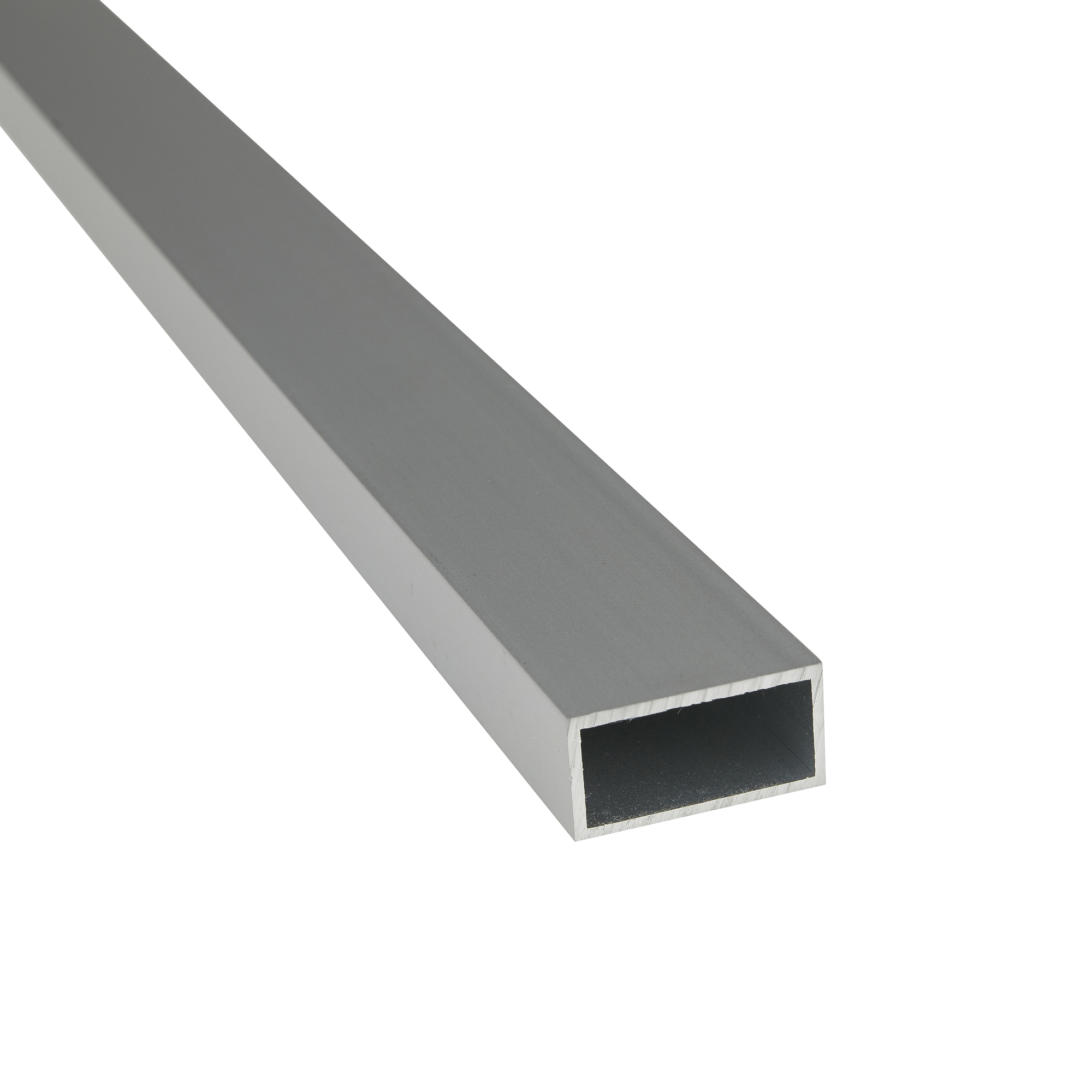

Silver anodized aluminium rectangular tubes
Powder coated aluminium rectangular tubes
Silver anodized aluminium rectangular tubes
Silver anodized aluminium angle
Silver anodized aluminium rectangular tubes
Powder coated aluminium rectangular tubes
Silver anodized aluminium rectangular tubes
Silver anodized aluminium angle
Cutting & Machining
mm
Value must be between %calculations.min_laenge% and %product.customFields.handelsgroesse_laenge%
Please note that custom-made items are excluded from return. Further information can be found in our cancellation policy.

Standard sizes are generally cheaper than custom cuts.

Length selection:
DEAL
DEAL
DEAL
DEAL
DEAL
Trennlinie:
Deburring:
Cutting costs per piece:
Cutting costs are not charged for standard stock sizes.
Length tolerance:
For more precise dimensions please select “custom cut”.
Powder coating
You have the option of customising this item with a powder coating of your choice.
Detailed information can be found in our information sheet.
Information sheet on powder coating (PDF)
Would you like powder coating?:
Trennlinie:
Color:
A one-time surcharge applies for special colors and will be shown separately in the cart.
Trennlinie:
Special color:
Gloss level:
Primer:
A one-time surcharge applies for the primer and will be shown separately in the cart.
Summary
Menge:
Length:
Length:
Tolerance:
Theoretical weight (per piece):
Theoretical weight (total):
Deburring:
Deburring:
Powder coating:
Powder coating:
Theor. Gewicht (pro Stück):
base_price_discount_percent:
base_price_without_discount:
Order more - save more!

€6.58 *

on the base price
Base price: €6.58* / m

Available, delivery time: -

Product number: LMX-01RREL-001

Product information

The aluminium rectangular tube made of EN AW-6060 (AlMgSi0.5) is supplied with a silver anodised surface E6/EV1. The profile is extruded and delivered in temper T66.

Technical features:

  • Material: AlMgSi0.5
  • Alloy designation: EN AW-6060
  • Surface: silver anodised E6/EV1
  • Coating thickness: approx. 10–15 µm
  • Temper: T66
  • Manufacturing process: extruded
  • Standards: EN 573-3, EN 755-1 / -2 / -9

Surface description:

  • E6: chemically pre-treated, anodised and sealed, matte finish
  • EV1: standard anodising process producing a natural silver finish

Material properties:

  • low density
  • very good anodising properties
  • suitable for powder coating
  • very good corrosion resistance
  • smooth surface
  • tight dimensional tolerances
  • good machinability
  • non-magnetic
  • very suitable for decorative anodising
  • weldable and solderable
  • suitable for food-contact applications according to EN 602

Notice: Suspension marks may occur during anodising. These are technically required and do not constitute a defect.

Scratches or marks in the base material may remain visible after anodising.

The sawn edges are not anodised and not deburred.

Surface appearance and colour may vary depending on production batch and display settings.
